PS3P140U. Wall-mounted / floor type 11kW / 48A 240V AC AC Home Model 2 EV smart charger INJET-Nexus (US)

Highlights:
1.Load balance management: limiting the total charging load can protect the local grid; sharing the charging load can reduce the required power connection cost
2.Record: You can view the charging record through the APP at any time; high-light LCD large screen: display real-time charging current, voltage, power consumption and time
3.Charging charging: If you want an electric car to charge at night, booking an APP is a good choice, very convenient
4.Set the current: When the grid is overloaded, you can set the current
5.High quality and safety: overvoltage, overvoltage, overload, short circuit, leakage, grounding, overtemperature, surge and other multiple protection

Details:

EAN:
SKU: PS3P140U. Wall-mounted / floor type 11kW / 48A 240V AC AC Home Model 2 EV smart charger INJET-Nexus (US)
essential information
Enter the wiring scheme: L + N + PE
Input rated voltage: AC 240V
Input the rated current: 48A
Input frequency: 50 / 60Hz
Output voltage: AC 240V
Output current: 48A
Rated power: 11KW
Operating temperature: -30°C + 55°C
Storage temperature: -40℃ + 75℃
Working humidity: 95% RH, no condensation of water droplets
RCD: A+DC6mA

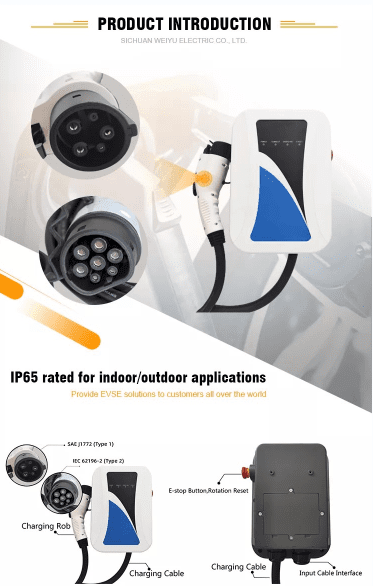

Cable connectors: SAE J1772, ENIEC61851-1, ENIEC61851-21-2
Connector type: NEMA 5-15 / 6-20 / 6-30 / 6-50 / 10-30 / 10-50 / 14-30 / 14-50 / EU Plug / UK Plug / CEE Plug
Support communication: 4.3-inch, APP, 4G, RJ 45, Bluetooth / wifi
Start mode: plug and play.(Support for optional password, fingerprint, swipe card, QR code)
Connector mechanical working life: 10,000 times
Emergency stop: Standard configuration OK
Key surface indicator: green / blue / red (blue-standby; green-charging gun connected to the car, flashing for charging; red-abnormal)
Cable length: 5m standard in Europe and 7.60m standard in America. Support to buy 10m, 15m
Quality assurance: 12 months
Waterproof grade: IP65
Impact protection: IK 10
Noise control: 60 dB
Product certification: 3C, CE, ROHS, REACH
Other instructions: working efficiency is greater than 98%; insulation resistance is greater than 10 MΩ;
Commodity materials: PC+ASA
Indicating lights: 4 LED lights, indicating 4 states, including power supply, connection, charging, and failure
Residual current protection: Type A, 30 mA + 6 mADC
Product color: black front + white back
Size of goods: 410 * 260 * 164mm

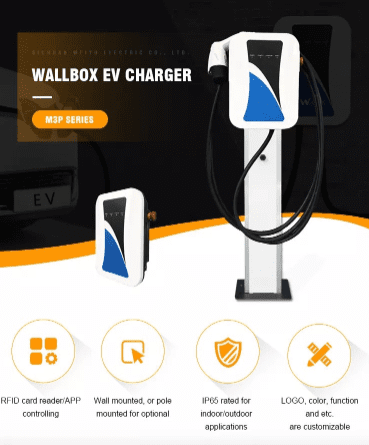

Installation mode: wall-mounted / landing type
Landing height: <2000m
Product features:
1.APP control:
△ Set the current: You can set the current when the power grid is overloaded
△ Control to stop and start: Control your phone to stop and start, and you can control it anywhere
△ Charging reservation: If you want an electric car to charge at night, charging reservation through the APP is a good choice, very convenient
△ Record: You can view the charging record through the APP at any time
2. Load balance management:
△ Limit the total charging load can protect the local grid
△ Sharing the charging load can reduce the cost of the power connection required
△ Choose the open CT (current transformer) as the current sensor, there is no physical wiring between the equipment, and it has the advantages of open and closed installation, convenient and fast wiring, and no additional infrastructure or installation cost
3. Specifications:
△ The body material adopts thermoplastic (insulator combustible UL94 VO) special integral molding, suitable for indoor and outdoor safety
△ High-light liquid crystal display screen displays the current, voltage, power consumption, time and so on
△ OEM or ODM available: logo, brand, design, size, color, function, fault information, etc., support for customization
△ Multi-function installation wall installation or base application
4. Protection:
△ High-quality, safe and reliable use of production design standards: overvoltage, overvoltage, overload, short circuit, leakage, grounding, overtemperature, surge and other protection
