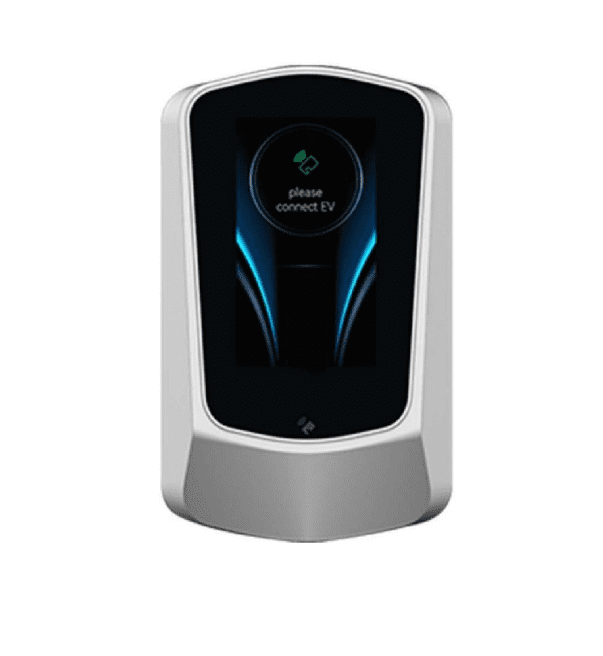

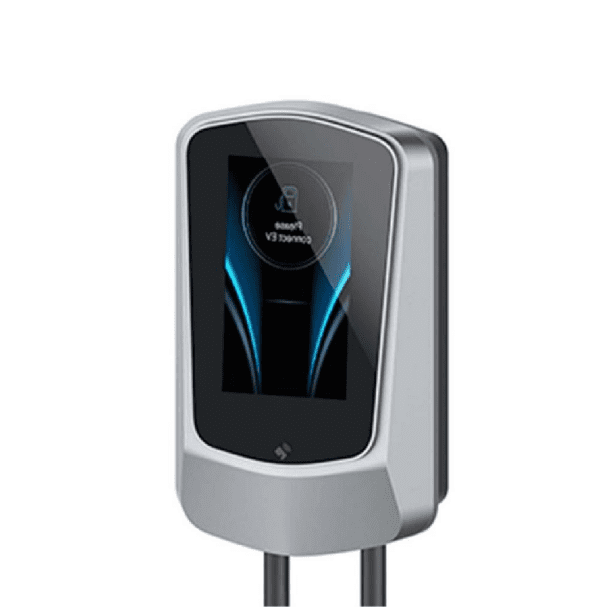

LCD LED 7 inch screen wall-mounted / floor plate type AC 240V, 48A, 11KW household type 2 electric vehicle smart charger INJET-Nexus(US)

Highlights:
1.Load balance management: limiting the total charging load can protect the local grid; sharing the charging load can reduce the required power connection cost
2.Record: You can view the charging record through the APP at any time; high-light LCD large screen: display real-time charging current, voltage, power consumption and time
3.Charging charging: If you want an electric car to charge at night, booking an APP is a good choice, very convenient
4.Set the current: When the grid is overloaded, you can set the current
5.High quality and safety: overvoltage, overvoltage, overload, short circuit, leakage, grounding, overtemperature, surge and other multiple protection

Details:

EAN:
SKU: PSQ61148(PSUS61148) LCD LED 7 inch screen wall-mounted / floor plate type AC 240V, 48A, 11KW household type 2 electric vehicle smart charger INJET-Nexus(US)
import:
Power supply: L1 + L2 + PE
Rated voltage: 240V
Rated current: 48A
Frequency: 50 / 60 HZ
output:
Output voltage: 240V
Output current: 48A
Rated power: 11KW
Cable length: 7.62M
Operating temperature: -30°C + 50°C
Storage temperature: -40℃ + 80℃
Working humidity: 5% 98% no coagulation cream, no condensation
Cable connectors: SAE J1772, EC61851-1, IEC 62196-2
Connector type: NEMA 5-15 / 6-20 / 6-30 / 6-50 / 10-30 / 10-50 / 14-30 / 14-50 / EU Plug / UK Plug / CEE Plug
RCD: A +ccid20
Support communication: APP, 4G, RJ 45, Bluetooth / wifi
Start mode: plug and play.(Support optional card)
Connector mechanical working life: 10,000 times
Emergency stop: Standard configuration OK
Key surface indicator: green / blue / red (blue-standby; green-charging gun connected to the car, flashing for charging; red-abnormal)
Cable length: American standard standard 7.60m. Support to buy 10m, 15m
Quality assurance: 12 months
Waterproof grade: IP65
Impact protection: IK 10
Noise control: 60 dB
Efficiency: 98
Insulation resistance: 10 MΩ
Power consumption of the control module: 7W
Product certification: 3C, CE, ROHS, REACH

Product features:
1.APP control:
△ Set the current: You can set the current when the power grid is overloaded
△ Control to stop and start: Control your phone to stop and start, and you can control it anywhere
△ Charging reservation: If you want an electric car to charge at night, charging reservation through the APP is a good choice, very convenient
△ Record: You can view the charging record through the APP at any time
2. Load balance management:
△ Limit the total charging load can protect the local grid
△ Sharing the charging load can reduce the cost of the power connection required
△ Choose the open CT (current transformer) as the current sensor, there is no physical wiring between the equipment, and it has the advantages of open and closed installation, convenient and fast wiring, and no additional infrastructure or installation cost
3. Specifications:
△ The body material adopts thermoplastic (insulator combustible UL94 VO) special integral molding, suitable for indoor and outdoor safety
△ High-light liquid crystal display screen shows the current, voltage, power consumption, time and so on
△ OEM or ODM available: logo, brand, design, size, color, function, fault information, etc., support for customization
△ Multi-function installation wall installation or base application
△ DC / AC smart charger covers BD, NIO, XPENG, Ideal Car, AION, ZEEKR, Audi, BMW, Chevrolet, Porsche, Porsche, Volkswagen, Volvo, Tesla, Citroen, Fisco, Ford, Mitsubishi, nissan, Peugeot, Renault, Smith, Tata, Toyota, Honda, Prius, Chery, Walker in most countries of the electric car market family (residential) and commercial purposes
4. Protection:
△ High quality, safe and reliable use of production design standards: overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input off protection and other vehicle regulation level protection
